Output:
4-20mA, RS485/MODBUS, or HART
Material:
316L(tube), 304(others)
Accuracy:
[0.2% + (zero stability /flow rate×100%)]
Conneciton:
Line size DN1 to DN150
Temperature:
Temperature range -60°C~+200°C(-60°C~+300°C, -200°C~+100°C) Temperature accuracy ±1°C
Density:
Density range: 0.2 g/cm3~3.5g/cm3
Density accuracy: ±0.002g/cm3
Pressure:
30MPa, 4MPa, 2.5MPa
Measuring Range:
0~0.02 t/h - 0~550 t/h
Description:

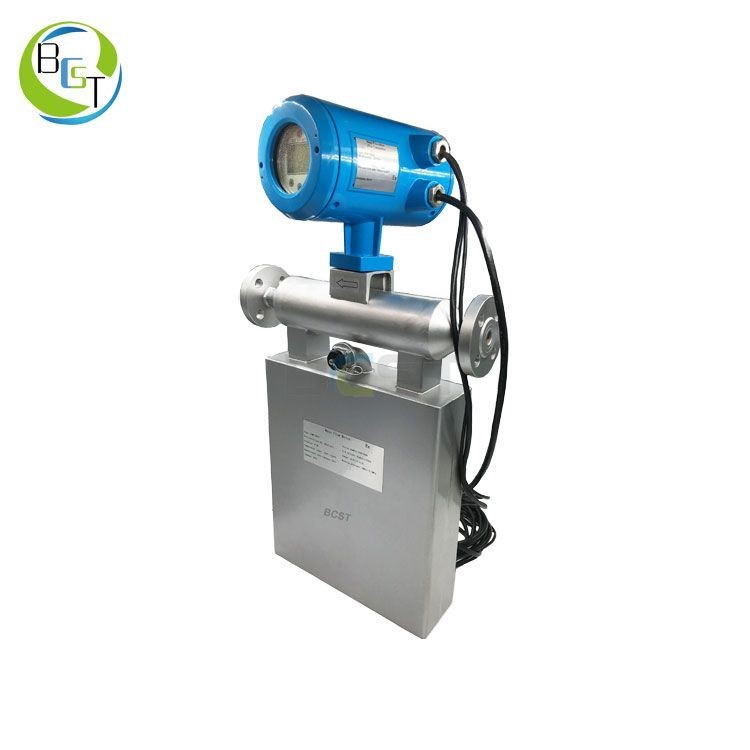

JCMF Coriolis Mass Flow Meters developed by our company are the leading meters for precision flow measurement. The meters offer the most accurate measurement available for virtually any process fluid while exhibiting exceptionally low-pressure drop. The meters offer direct mass flow, volume flow, density, and temperature measurement of liquids and slurries - without the need for additional equipment, manual calculations, or estimations.
The meters are designed for unsurpassed performance in even the harshest operating environments. They have no moving parts, and any special mounting or flow conditioning requirements. Every meter is available with stainless steel wetted parts and a wide variety of process connections to meet your every need
