Output:
12V three-cable pho-electri transmitter, 24V three-cable pho-electri transmitter, 12V two-cable inductance transmitter, 12V three-cable inductance transmitter, 24V three-cable inductance transmitter, 4-20mAanalog signal
output:
class 0.5, class 0.2 (normal operating temperature -10°C~+60°C)
Accuracy:
Conneciton:
Temperature:
Measuring Range:
Description:
Measured media temp. (environment temperature -41°C ~ +50°C) JCLC-A、B、C: -20°C~+60°C; 60°C~200°C(with high temp. radiator installed) JCLC-Q、L:-20°C~+60°C;
0.08-0.5~227-340
Oval gear meters are instruments used for the continuous and intermittent measurement and control of the pipe liquid flow, which are typical of positive displacement meter, feature large flow range, low pressure loss, large viscosity range, easy installation, high accuracy and can measure high temperature, high viscosity liquids with easy calibration.

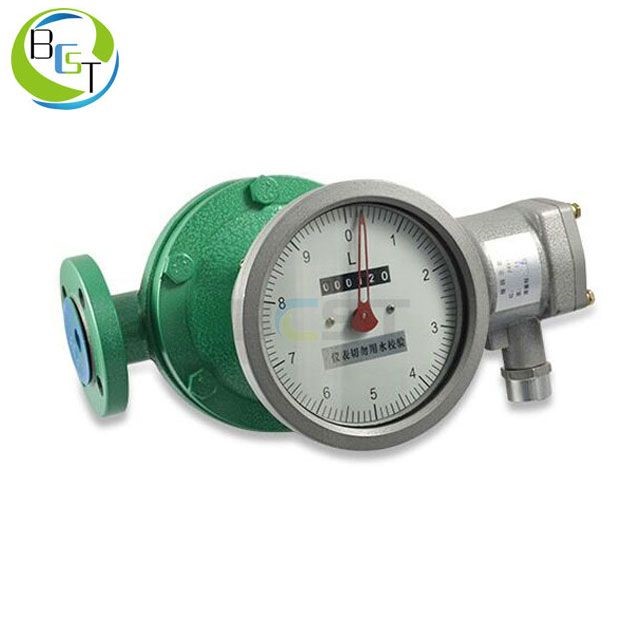

JC-LC oval gear meters are fitted with on-site pointer indication and roller integration device which can indicate the liquid flow and intermittent flow passing through the pipeline. For the different liquids (acid, alkali, salt, organic solution etc.), the meters can be made of different materials (cast iron, cast steel, stainless steel etc.). The meters are widely used for the flow measurement in the field of petroleum, chemical, chemical fiber, traffic, food industries and commerce, medical and sanitary departments.
