Output :
4~20mADC, load<= 750ohm, O~3kHz, 5V with source and changeable width. high terminal and effective frequency output, RS485 interface
Material :
316L (stainless steel), Hastelloy C, Hastelloy B, Titanium, Tantalum
Accuracy :
0.3%, 0.5%,1.0%
Connections :
Flange: ANSI, DIN, JIS, ISO, GB standard, Thread:NPT, BSP,G, Tri-clamp connection
Temperature :
Fluid Temperature: -20C~80C, 80C~130C, 130C~180C Depending on Lining Material Ambient Temperature: Sensor-40C~80C. transducer -15C~50C
Operation Pressure :
1.0MPa, 1.6MPa, 4.0MPa, 16MPa (special)
Measuring Range :
0.1~10m/s (extendable to 15m/s)
Description :

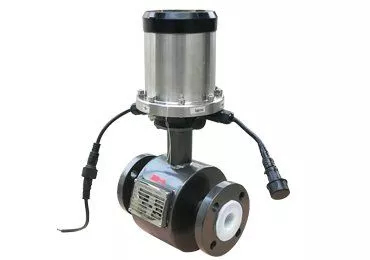

An electromagnetic flowmeter is a kind of inductional instrument designed by Faraday's law of electromagnetic induction to measure the flow of conductive media in the tube. It adopts the technology of insertion of a single chip to realize digital excitation and employs CAN local Fieldbus. The electromagnetic flowmeter can realize local indication and output electrical current signal of 4- 20mA which can be used to record, adjust and control. Electromagnetic flow meters are widely used in industrial sectors such as the chemical industry, environmental protection, metallurgy, pharmaceutical, paper making, water supply, and removal, etc. Besides measuring the flow of general conductive liquid electromagnetic flowmeter can measure the flow of liquid-solid mixed fluid, high-viscosity fluid and salt, strong acid, and strong alkali. Protection Ratings Integral type: IP65. remote type: sensor IP68, transducer IP65 Materials of Liner PTFE, soft rubber, hard rubber, PFA, etc
