Output :
Sensor: pulse frequency signal, low electrical level≤0.8V,high level≥8V Transmitter: two wire, 4-20 mA DC current signal
Material:
SS304, SS316 (L)
Accuracy:
±1%, ±0.5%, ±0.2%
Conneciton:
4, 6, 10, 15, 20, 25, 32, 40 thread connection:
(15, 20, 25, 32, 40) 50, 65, 80, 100, 125, 150, 200 flange connection
Temperature:
Medium Temperature: -20 to +120 Degree °C
Ambient Temperature: -10 to 55 °C
Turndown:
1:10, 1:15; 1:20
Measuring Range:
0.04~0.25 m3/h - 80~800 m3/h
Description:

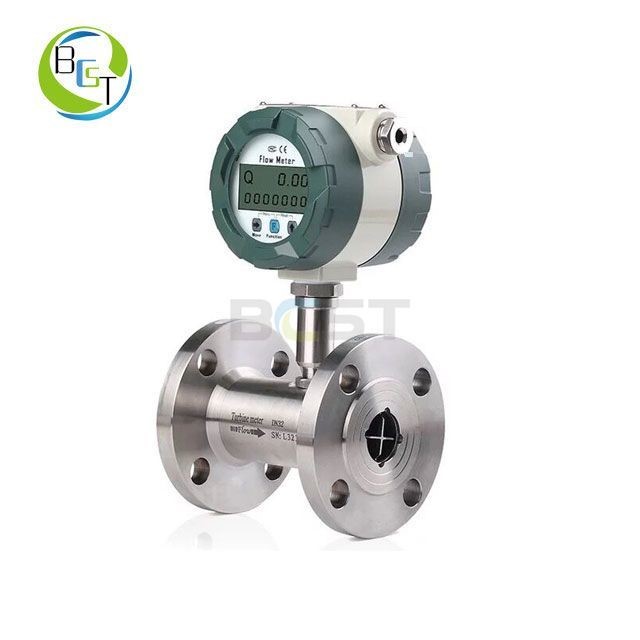

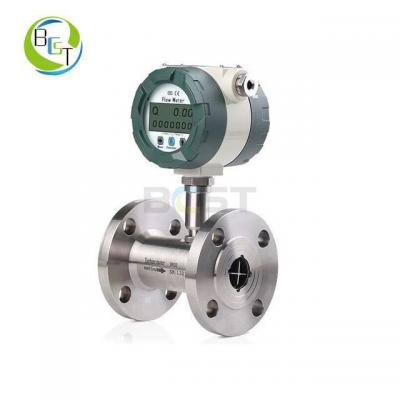

JC-060 series Turbine Flowmeter has simple structure, high accuracy, good repetitiveness, fast response and convenient maintenance. It is widely used for liquid without corrosion to stainless steel.
C-060 series Turbine Flowmeter has a simple structure, high accuracy, good repetitiveness, fast response, and convenient maintenance.
It is widely used for liquid without corrosion to stainless steel, Al2O3, or hard alloy, without fiber or particle and kinematic viscosity less than 50×10-6m2/s.
