Output:
4-20 mA DC current signal
Material:
Stainless Steel 316
Accuracy:
standard type class1.5 special type class1.0
Conneciton:
standard type: DIN 2510 standard flange
Special type: flange and thread appointed by users of any standard
Temperature:
-40 °C to 400 °C
Pressure:
< 6.4Mpa
Measuring Range:
water: (20°C) 1-200000 l/h
air: (20°C, 0.1013 Mpa) 003-4000m3/h
Description:

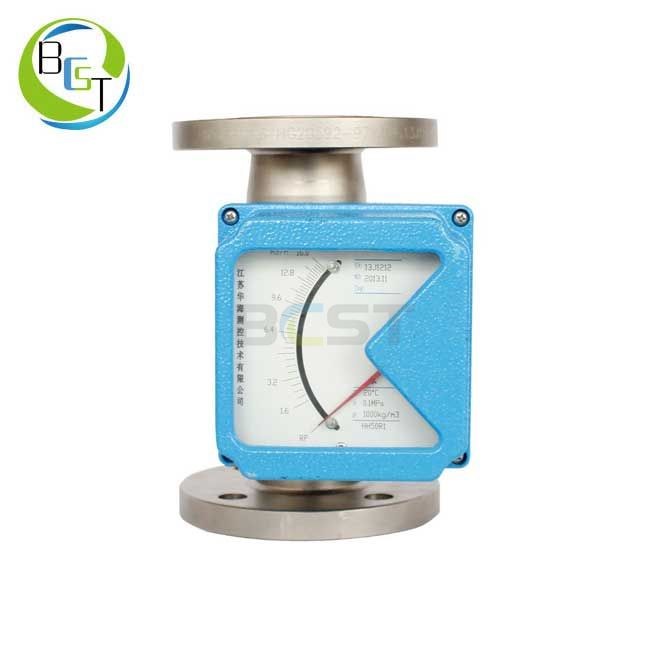

JC 050 series metal tube rotameter is a kind of measuring meter in which the flow rate is changing along with the area and is widely used in the process control of industrial automation. It has the merit of little volume, broad measuring range, and convenience for use. It can be used to measure liquid, gas, and vapor flow especially fits for the flow rate measurement of low flow velocity and little flow rate.
JC050 series metal tube rotameter has local indication type and smart remote type with a pointer LCD displaying instantaneous/ accumulated flow rate, upper-limit, and lower-limit alarm output, accumulative pulse output, batch control, standard two-wire 4-20mA current output, etc. Additionally, this instrument employs advanced microprocessing central chip and high-quality industrialized components of Motorola corporation to ensure the good performances of flowmeters in all applicational fields.
