Output:
4~20 mA (two wires), 4-20ma (three wires), RS 485 interface, Pulse/Frequency
Material:
Aluminum alloy housing for PN≤1.6MPa; cast steel or SS housing for PN≤4.0MPa; please specify for PN > 4.0MPa
Accuracy:
Class 1.5
Conneciton:
Flange Connection Type DN25, DN32, DN50, DN80, DN100, DN150, DN200
Temperature:
Ambient temperature: -30~+60°C
Medium temperature: -20 ~ +80°C
Operation Pressure:
1.6MPa, 2.5MPa, 4.0MPa, (special)
Measuring Range:
2.5-30 m3/s ~ 360-3600 m3/s
Description:

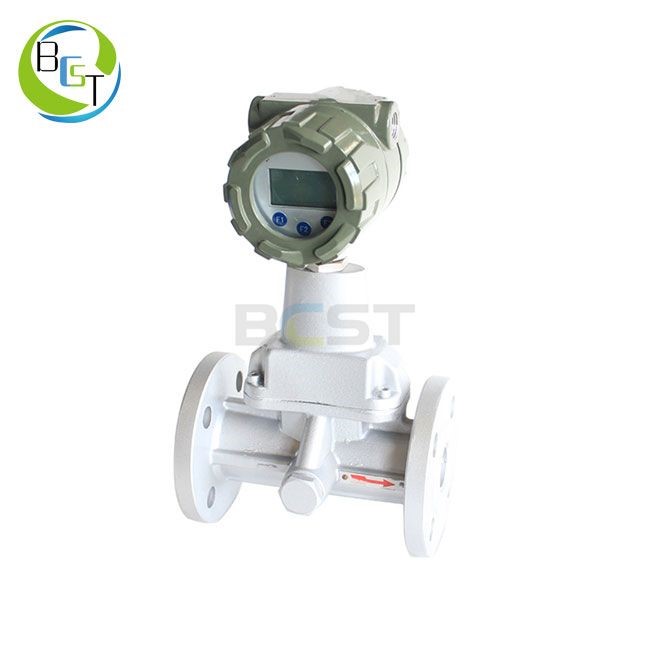

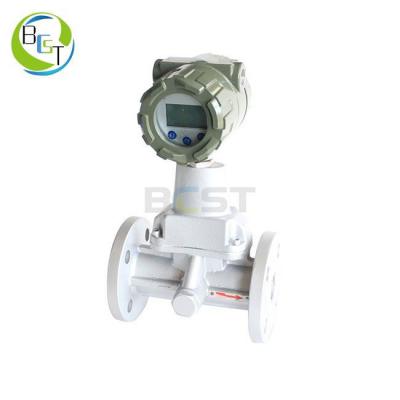

JC-040 series smart precession whirlpool flowmeter uses new micro-processing technology with strong function, wide flow range, simple maintenance, and convenient installation & use. It is widely used in industries such as petrol, chemical, power, metallurgy, and coal, etc.
Explosion Proof: Exd II CT6
