Output:
Analogue output: 4-20mA or 0-20mA current output. Impedance 0~1kW. Accuracy 0.1%.
OCT output: Frequency signal (1~9999HZ)
Relay output: over 20 source signal (no signal, reverse flow etc.) RS485 serial port
Material:
pipe: Steel, stainless steel, cast iron, cement pipe, copper, PVC, aluminum, FRP etc. Liner is allowed ±1%
Accuracy:
Process Temperature
Size:
Description:
Standard: -30°C -90°C, High-temperature: -30°C-160°C
DN15-100mm ~ DN300-6000mm

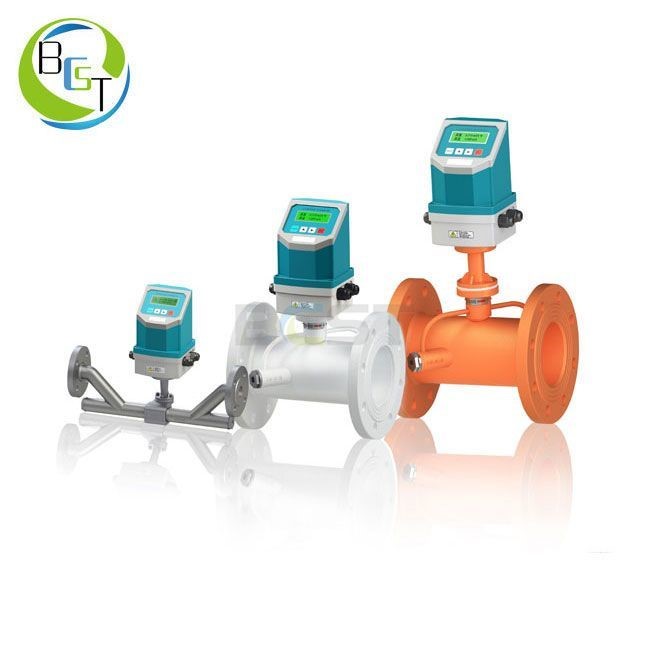

The new generation JC-3000F is developed, with the experience of 12 years of manufacturing ultrasonic flowmeter, based on our version-12 and version-15 flow meters. By using the high-performance MSP430FG4618 microprocessor made by Taxes Instruments, it is intended to provide our customers with lower cost but of high-performance general purpose ultrasonic flow meter.
