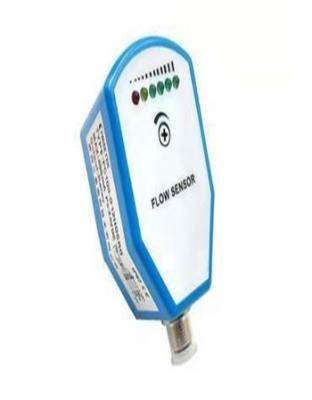

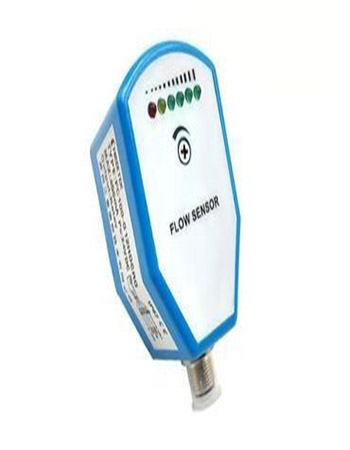

JC 210 Standard Thermal Flow Switch

Output:,

PNP, NPN, Relay, Analog (4...20mA) PNP + NPN (SPDT)

Material Sensor:

stainless steel Housing: PBT

Accuracy :

0.5%, 1%

Connection :

Thread: G1/2""", G1/4"" Electrical: M12 plug /cable outlet (2m selectable)

Process Temperature

Medium temp.: -20-80°C Ambient temp.: -20-80°C Storage temp.: -20-100°C

Measuring Range :

1...150cm/s(Water), 3...300cm/s(Oil) 20...2000cm/s(Air)

Description :

JC 210 Standard Thermal Flow Switch is based on two temperature sensors that are positioned within the medium. The unheated sensor registers the liquid temperature.The other sensor is heated a few degrees above the medium, when the medium flows, the heat generated in the sensor is conducted away by the medium. The temperature of the sensor is measured and compared to the temperature of the medium. The state of flow can be derived by the temperature difference.
